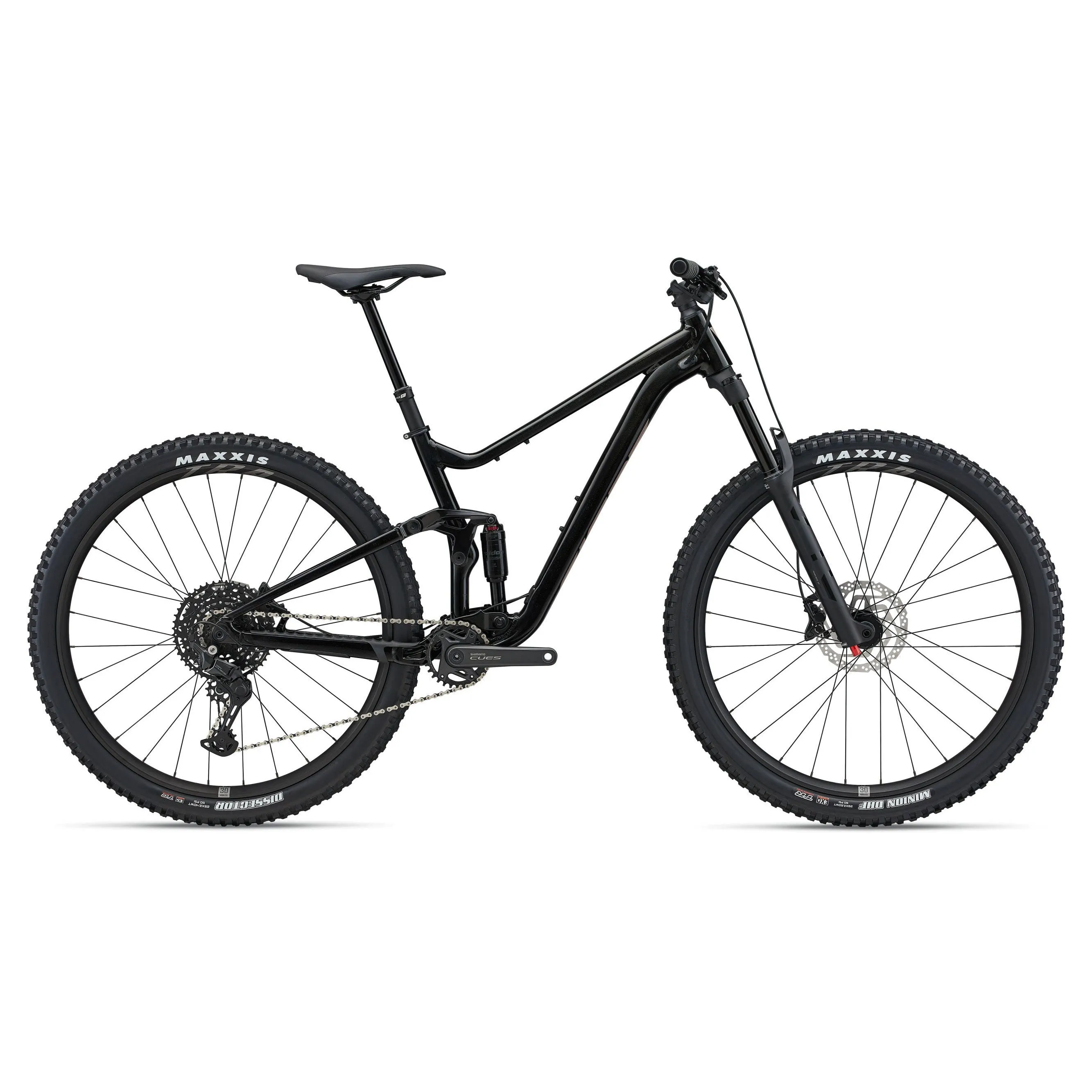

Everything you need to have fun on the trail. Smooth suspension lets you float over rocks, roots and ruts. Confident geometry keeps you in control. And quick-handling 27.5 wheels with high-volume tires give you full control on singletrack terrain.
Key Performance Factors
Modern trail geometry
A slacker head tube angle (65.5 degrees) and steeper seat tube angle (76.5 degrees) place the rider in a confident, balanced position to take on technical climbs and descents.
Proven suspension setup
FlexPoint rear suspension offers 125mm of smooth, active travel. The frame is paired with a 140mm fork, delivering maximum confidence on climbs and descents.
Lightweight aluminum frame
The ALUXX aluminum frameset is hand-built and engineered in-house by the world leader in alloy bicycle technology. An external storage space makes it easy to carry tools, snacks and other ride essentials.
| Sizes | S, M, L, XL |
| Colors | Panther |
| Frame | ALUXX-Grade aluminium, 125mm FlexPoint suspension, 12x148mm thru-axle |
| Fork | Giant STL 34 RCL, 140mm, Boost 15x110 |
| Shock | Suntour Raidon R |
| Handlebar | Giant Contact Trail, 31.8mm |
| Stem | Giant Contact S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost | Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm |
| Saddle | Giant Romero |
| Pedals | N/A |
| Shifters | Shimano CUES, SL-6000, 1x10 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano CUES, U6000, Shadow |
| Brakes | Shimano BR-MT200, hydraulic, Shimano RT-26 rotors [F]180mm, [R]160mm |
| Brake Levers | Shimano BL-MT201 |
| Cassette | Shimano CUES, LG300, 11-48 |
| Chain | KMC X-11 |
| Crankset | Shimano CUES, U6000-1, 30t S:170mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket | Shimano, threaded |
| Rims | Giant TRA Hookless Tubeless ready Alloy 29 30mm inner width |
| Hubs | [F] Giant Boost 110x15, Sealed Bearing [R] Giant Boost 148x12, Sealed Bearing, HG |
| Spokes | Sapim Race |
| Tires | [F] Maxxis Minion DHF 29.x2.5 WT, wire, TLR, EXO, tubeless, [R] Maxxis Dissector 29x2.4 WT, wire, TLR, EXO, tubeless |
| Extras | Tubeless prepared, max tyre size 2.5", max chainring size 32t |
